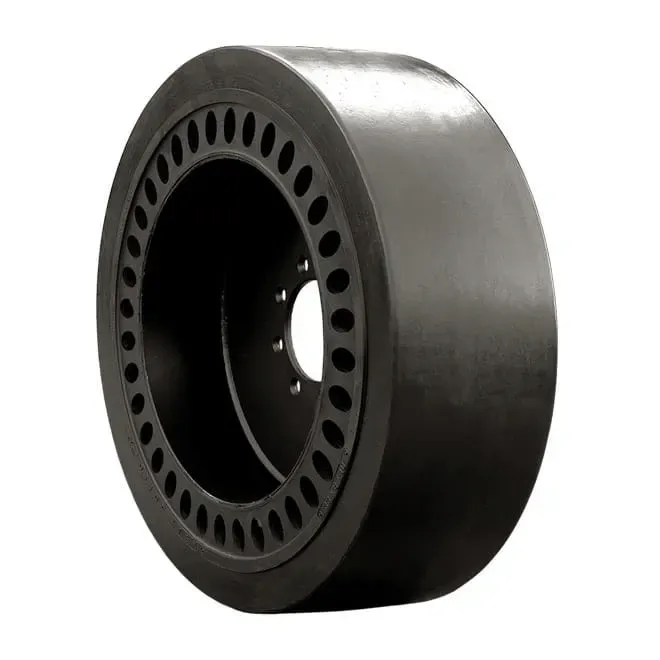

Brawler HD Solidflex Smooth (Solid)
Brawler HD tires are designed to perform in extreme environments where good ride quality is required.
Brawler HD tires are designed to perform in extreme environments where good ride quality is required including scrap metal recycling centers, waste transfer stations and mining operations.
The Brawler HD features a two piece patented wheel and disk system that allows tire and wheel interchangeability by simply changing the disk.
• Comfortable ride comparable to foam filled pneumatic tires
• Steel wheels engineered to handle heavy loads, excessive torque, severe sheer and bending stress
• Custom traction tread available up to 7 inches deep.
Downloads
Technical Data
| Size | Pneumatic Equivalent Size | Tire O.D. [mm] |
Width [mm] |
Rubber Thickness [mm] |
Tread Depth [mm] |
Weight [kg] |
Load Capacity 10 km/h [kg] |
Load Capacity 16 km/h [kg] |
Load Capacity 25km/h [kg] |
| 55x10x18 | 17.5-25 | 1395 | 457 | 254 | 127 | 672 | 10010 | 8710 | 8010 |
| 59x12x20.5 | 20.5-25 | 1500 | 521 | 292 | 165 | 894 | 11835 | 10300 | 9470 |
| 62x13x21 | 20.5-25 | 1575 | 533 | 330 | 190 | 1033 | 11210 | 9755 | 8970 |
| 66x16x24 | 23.5-25 | 1675 | 610 | 406 | 254 | 1383 | 14665 | 12760 | 11735 |
| 69x17x28 | 26.5-25 | 1755 | 711 | 432 | 279 | 1758 | 17770 | 15460 | 14220 |
| 73x18x31 | 29.5-25 | 1855 | 787 | 450 | 305 | 2148 | 20360 | 17715 | 16290 |
| 80x18x35 | 35/65-33 | 2030 | 889 | 457 | 305 | 3207 | 26550 | 23100 | 21240 |
