XP900

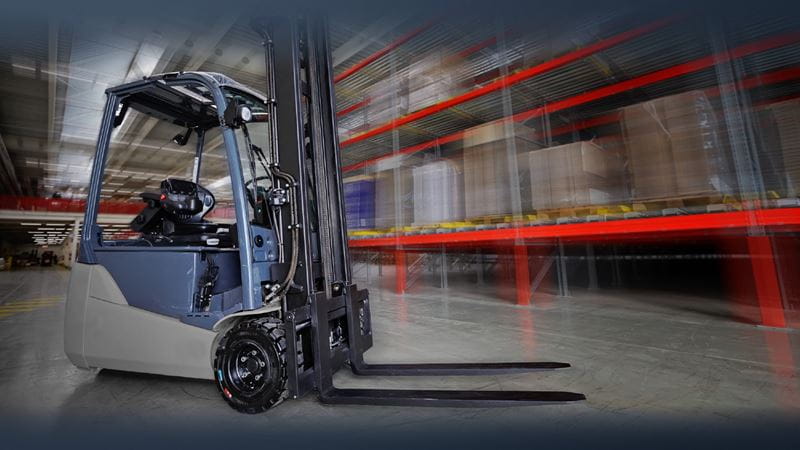

The XP900 is the ideal tire for high intensity applications across a variety of conditions.

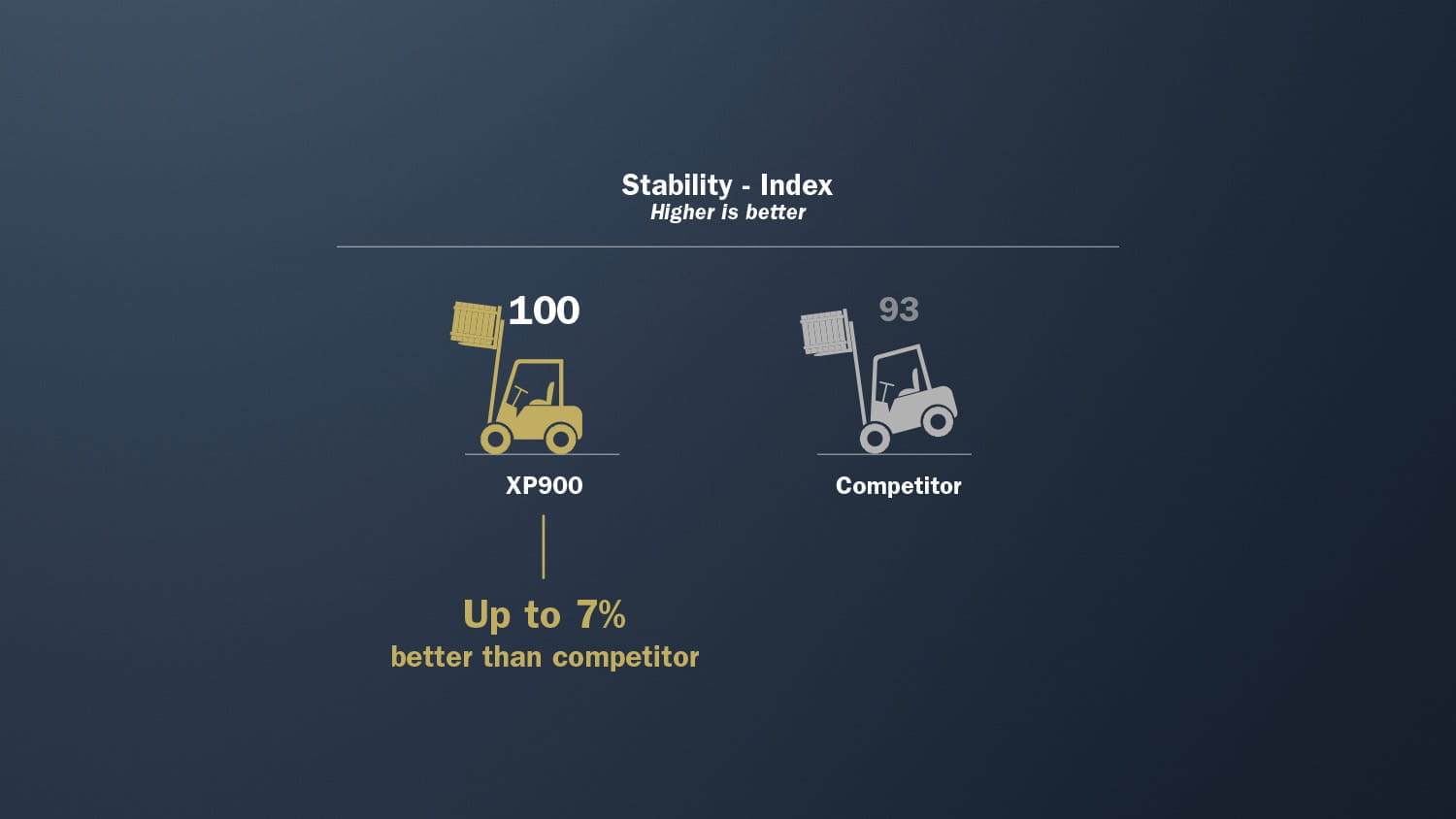

It provides exceptional stability and maneuverability for loading and unloading goods in warehouses, on shop floors, and throughout all other material handling ground services.Suitable for indoor and outdoor usage, the XP900 tire offers a long life span and high stability, maximizing the performance of your handling operations. Its compounds are made with advanced materials, guaranteeing a more sustainable impact on the environment and an ongoing reduction in CO2 emissions. Find your Dealer
Downloads
From instructions and advice to tips and sizing details , these PDFs cover all the information you will need on the XP900
Technical Data
| LOC+STD | Product Dimensions [mm] | Load Capacity [kg] | ||||||||
| Size | Alternative Size | Rim | Pattern | Overall Diameter | Section Width | Other | Counterbalanced Lift Trucks up to 25 km/h | |||
| Static | Load Wheel | Steering Wheel | ||||||||
| 15x4½-8 | 125/75-8 | 3.00D-8 | Traction | ■ |
380 | 115 | 1.210 | 1.040 | 800 | |
| 5.00-8 | 3.00D-8 | Traction | ■ |
451 | 121 | 1.650 | 1.415 | 1.090 | ||
| 16x6-8 | 150/75-8 | 4.33R-8 | Traction | ■ |
412 | 151 | 1.740 | 1.495 | 1.150 | |
| 18x7-8 | 180/70-8 | 4.33R-8 | Traction | ■ |
457 | 146 | 2.490 | 2.145 | 1.650 | |
| 140/55-9 | 15x5.5-9 | 4,00E-9 | Traction | ■ |
381 | 130 | 1.360 | 1.170 | 900 | |
| 6.00-9 | 4,00E-9 | Traction | ■ |
528 | 142 | 2.190 | 1.885 | 1.450 | ||
| 21x8-9 | 200/75-9 | 6,00E-9 | Traction | ■ |
516 | 188 | 3.200 | 2.755 | 2.120 | |
| 6.50-10 | 5.00F-10 | Traction | ■ |
571 | 165 | 2.720 | 2.340 | 1.800 | ||
| 200/50-10* | 6.50F-10 | Traction | ■ |
457 | 194 | 2.870 | 2.470 | 1.900 | ||
| 23x9-10 | 225/75-10 | 6.50F-10 | Traction | ■ |
583 | 208 | 4.000 | 3.445 | 2.650 | |
| 7.00-12 | 5.00S-12 | Traction | ■ |
657 | 168 | 3.380 | 2.920 | 2.240 | ||
| 23x10-12* | 250/60-12 | 8.00G-12 | Traction | ■ |
575 | 230 | 4.380 | 3.770 | 2.900 | |
| 27x10-12 | 250/75-12 | 8.00G-12 | Traction | ■ |
676 | 230 | 4.530 | 3.900 | 3.000 | |
| 7.00-15 | 29x8-15 | 5.5-15 | Traction | ■ |
723 | 186 | 4.115 | 3.545 | 2.725 | |
| 8.25-15 | 6.5-15 | Traction | ■ |
813 | 203 | 5.510 | 4.750 | 3.650 | ||
| 28x9-15 | 225/75-15 (8.15-15) | 7.0-15 | Traction | ■ |
700 | 206 | 4.530 | 3.900 | 3.000 | |
| 250-15 | 250/70-15 | 7.0-15 | Traction | ■ |
713 | 211 | 5.510 | 4.745 | 3.650 | |
| 250-15 | 250/70-15 | 7.5-15 | Traction | ■ |
713 | 211 | 5.510 | 4.745 | 3.650 | |
| 300-15 | 315/70-15 | 8.0-15 | Traction | ■ |
814 | 241 | 6.795 | 5.850 | 4.500 | |
| 355/45-15* | 28x12½-15 | 9.75-15 | Traction | ■ |
692 | 287 | 6.610 | 5.690 | 4.375 | |
| 355/50-15* | 9.75-15 | Traction | ■ |
713 | 283 | 6.610 | 5.690 | 4.375 | ||
| 355/65-15 | 32x12½-15 (350-15) | 9.75-15 | Traction | ■ | 818 | 300 | 9.060 | 7.800 | 6.000 | |
Product Video

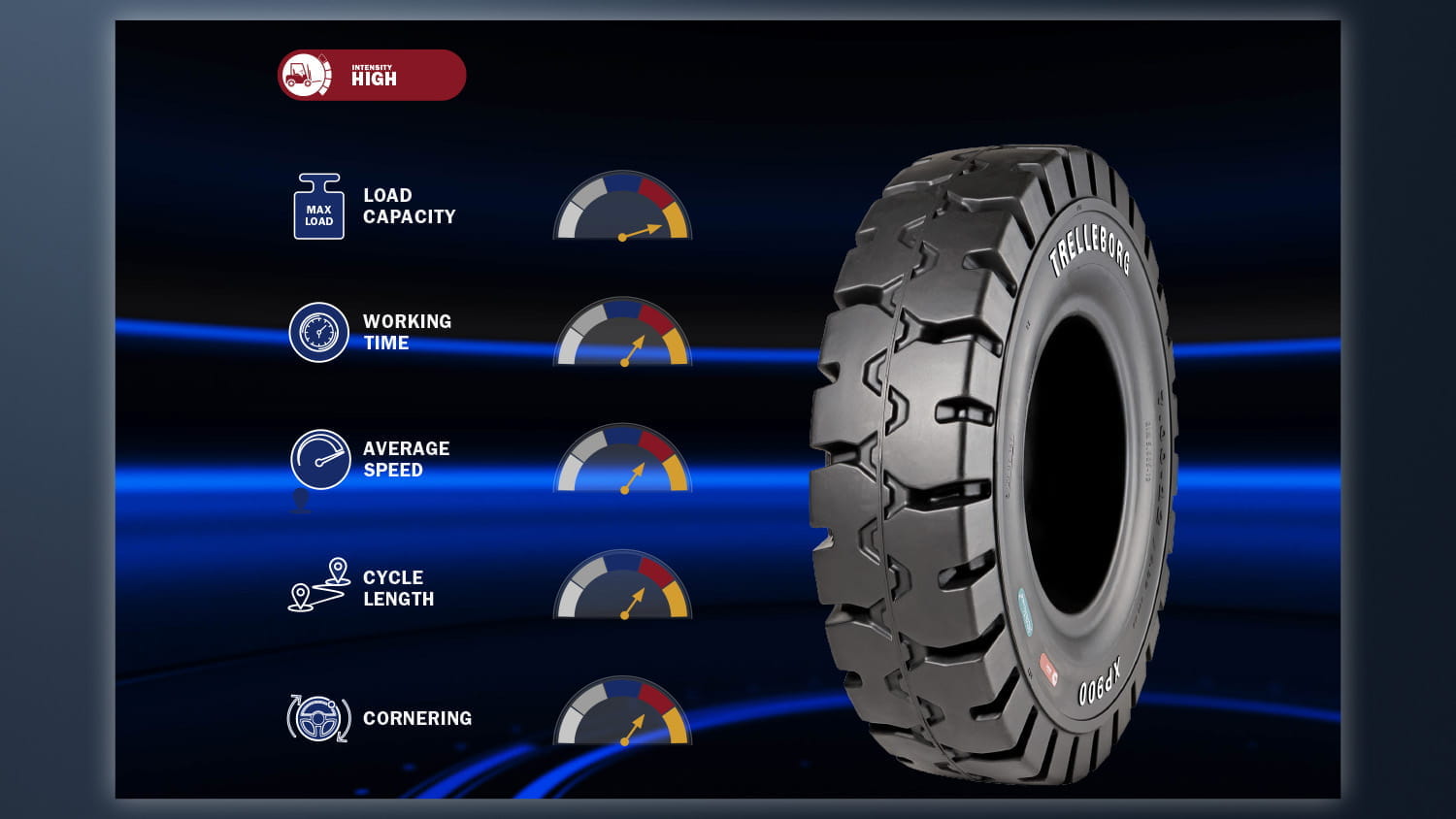

Trelleborg XP900
The perfect choice for high intensity applications
The XP900 allows superior performance throughout the workday.
It delivers remarkable average speed, cycle length, and cornering, enabling increased efficiency and high performance in all high intensity operations.
State of the art design
The advanced design of the XP900 tire ensures long lasting durability both indoors and outdoors.
The specific compounds are designed to withstand a wide range of conditions and environments, making the XP900 an excellent choice for those who require reliability and longevity in their tires.
The optimal solution for your operations

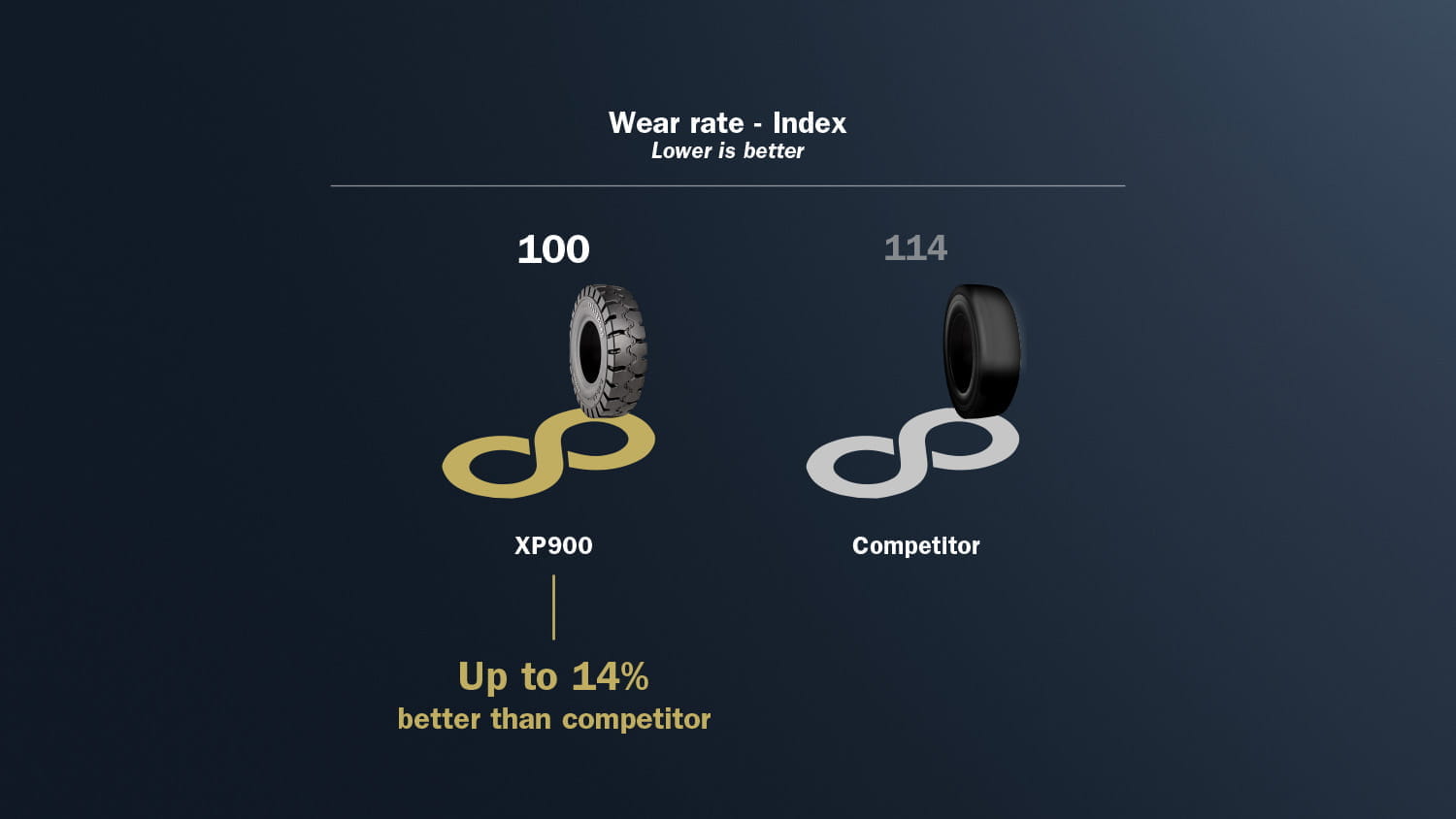

The XP900 delivers great tread wearing performances, ensuring a longer tire life expectation.

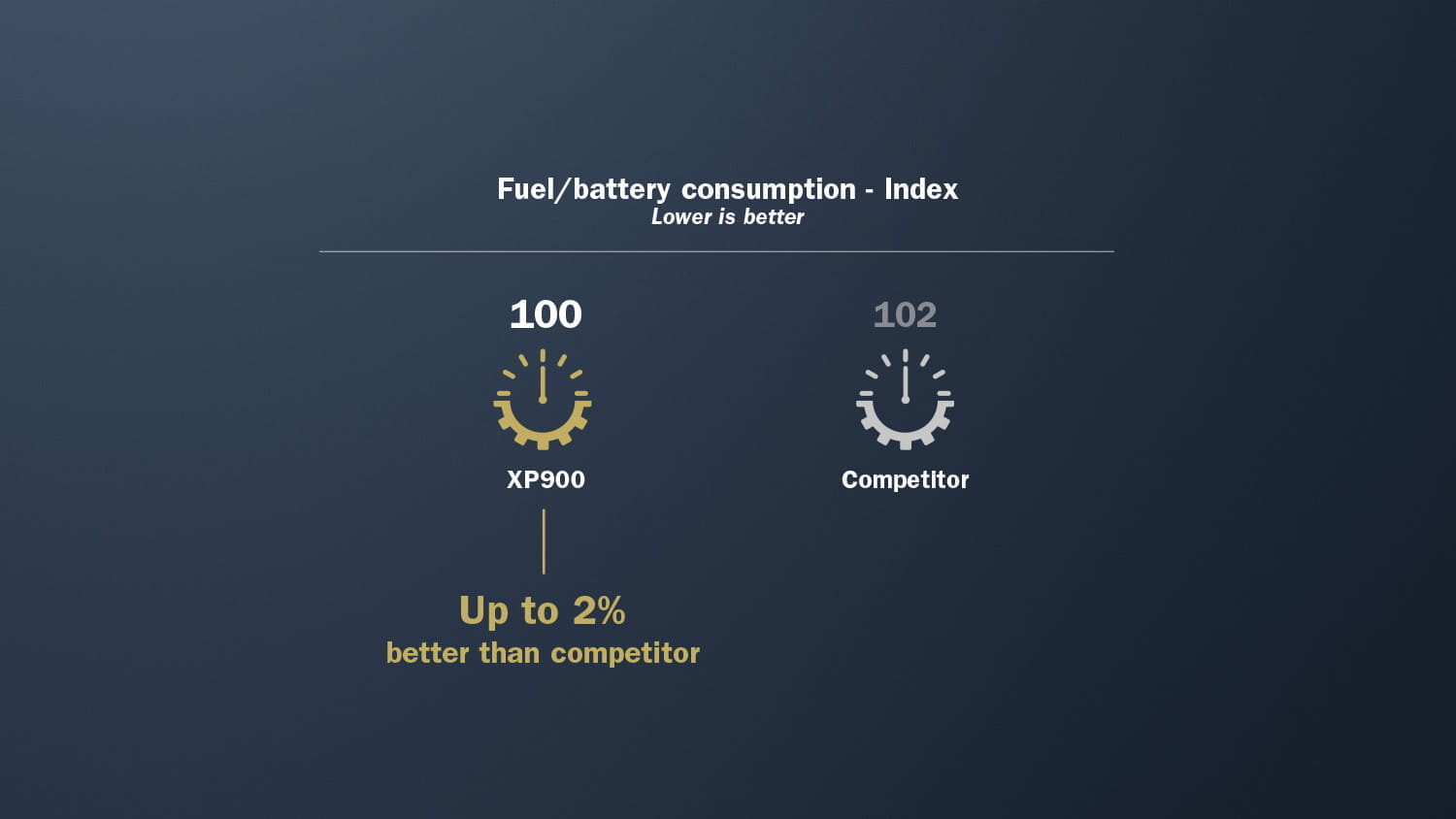

Its specific configuration guarantees a minimum level of energy waste reducing the fuel or battery consumption.
High performance for your applications

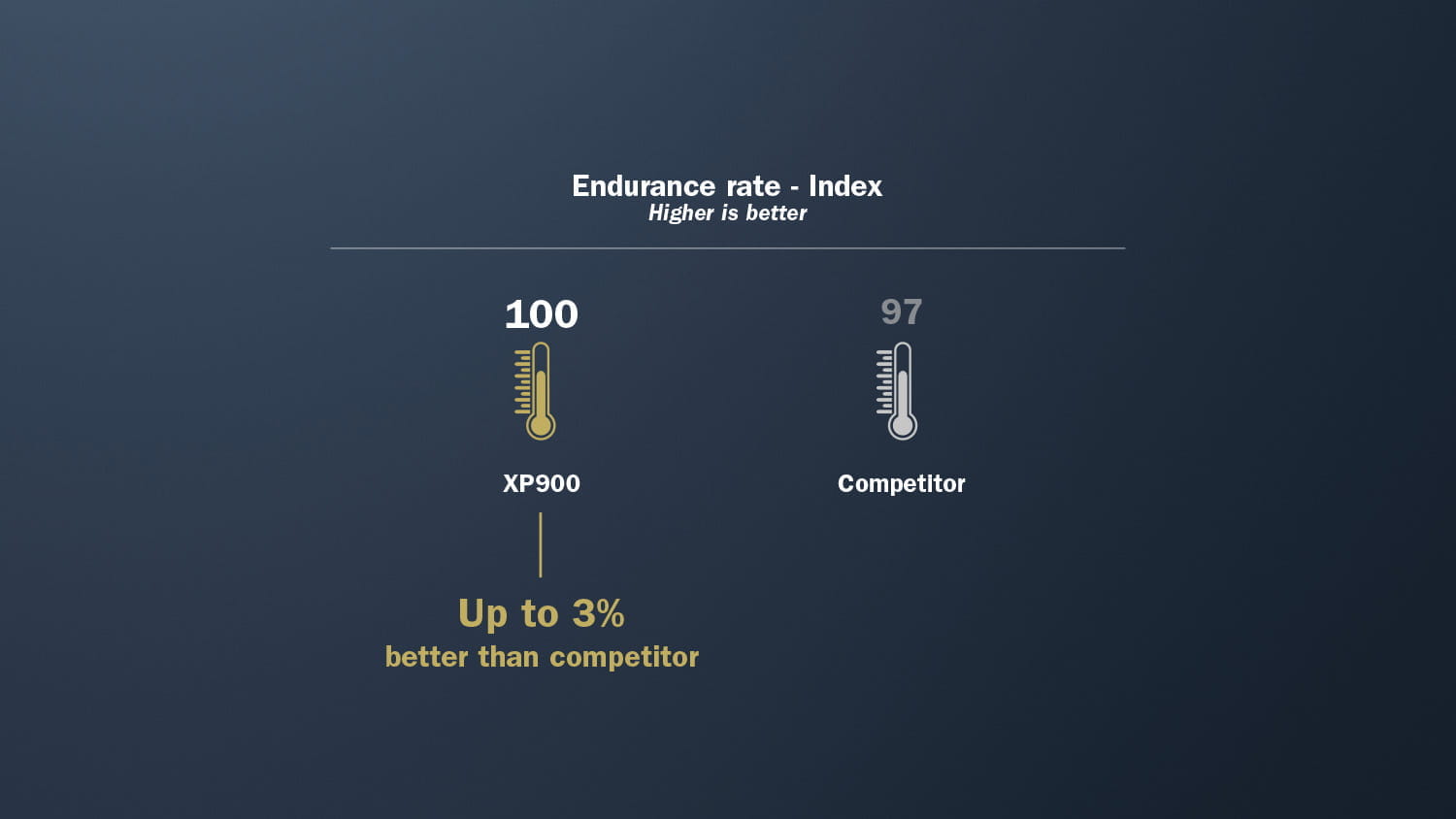

The XP900 tire has an outstanding endurance rate which prevents heat generation during prolonged use.
Subsequently, it delivers a low heat build-up rate than competitor brands when utilized on high intensity applications.
